PERMA-COLUMN SYSTEM
PERMA-COLUMN SYSTEM
Barndominium Foundation Columns

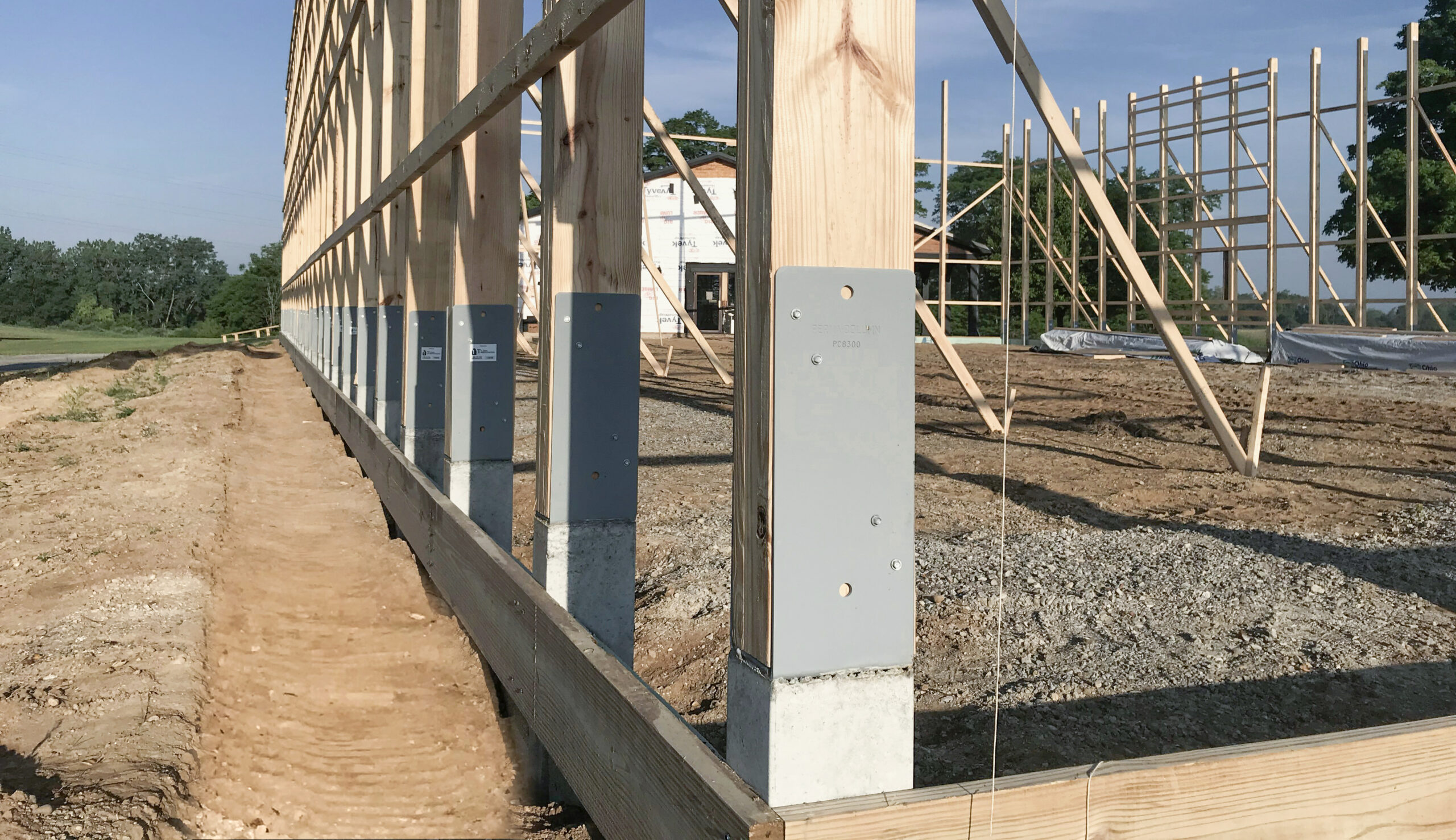

Barndominium foundation columns from Perma-Column® give a post-frame home a concrete foundation with no wood in the ground. Each precast column sets in the soil and holds the wood post above grade in a steel bracket.
Barndominium Foundation Columns
Barndominium foundation columns from Perma-Column® give a post-frame home a concrete foundation with no wood in the ground. Each precast column sets in the soil and holds the wood post above grade in a steel bracket.
NO CONCRETE TRUCKS
NO MORE WOOD ROT
NO CONCRETE TRUCKS
NO MORE WOOD ROT
Why it matters on a barndominium
What Perma-Column gives you
- Concrete in the ground, wood above it
- 10,000 psi concrete with 60,000 psi rebar
- 1/4 inch powder-coated steel bracket welded to full-length rebar
- Freeze and thaw protection in the concrete mix
- No treated wood in the soil around stalls and paddocks
- ICC-ES certified (ESR-4238), which speeds up permits
- Lifetime warranty
Why wood posts fail in horse barns
What Perma-Column gives you
- Concrete in the ground, wood above it
- 10,000 psi concrete with 60,000 psi rebar
- 1/4 inch powder-coated steel bracket welded to full-length rebar
- Freeze and thaw protection in the concrete mix
- No treated wood in the soil around stalls and paddocks
- ICC-ES certified (ESR-4238), which speeds up permits
- Lifetime warranty
Installation
Your builder sets Perma-Columns in augered holes using standard post-frame methods. There is no concrete truck to schedule for the posts and no cure time before framing. The footing your plans call for under a wood column works under a Perma-Column.
Perma-Column Available Sizes
| Column | Total Length |
Concrete Length |
Bracket Height |
Item Weight |
Description |
|---|---|---|---|---|---|
| PC6300 | 73" | 59 3/4" | 13" | 165 lbs |
4-5/8" pocket fits 3 ply 2x6 |
| PC6400 | 78 1/2" | 60" | 18" | 215 lbs |
6-1/8" pocket fits 4 ply 2x6 or 6x6 post |
| PC8300 | 78" | 59 3/4" | 18" | 235 lbs |
4-5/8" pocket fits 3 ply 2x8 |
| PC8400 | 77 3/4" | 59 1/2" | 18" | 290 lbs |
6-1/8" pocket fits 4 ply 2x8 or 6x8 post |
| PC8500 | 78 3/4" | 60" | 18" | 345 lbs |
7-5/8" pocket fits 5 ply 2x8 |
AVAILABLE SIZES
|
Model |
Fits |
|---|---|
|
PC6300 |
3-ply 2x6 |
|
PC6400 |
4-ply 2x6 or 6x6 post |
|
PC8300 |
3-ply 2x8 |
|
PC8400 |
4-ply 2x8 or 6x8 post |
|
PC8500 |
5-ply 2x8 |
INSTALLATION
Your builder sets Perma-Columns in augered holes using standard post-frame methods. There is no concrete truck to schedule for the posts and no cure time before framing. The footing your plans call for under a wood column works under a Perma-Column.
Common Questions
What if my frost line is deep? Column extenders attach to the base of the column to add embedment depth.
What about high wind areas? Uplift anchors bolt to the base of the column for added holding strength.
My plans show a slab or stem wall. Can I still use your products? Yes. Sturdi-Wall® brackets anchor wood columns to the top of the concrete. Tell us which foundation your plans show.
Will my engineer accept it? Send them the ICC-ES report and our design guide with calculations. Both are free to download.
How heavy are the columns? 165 to 345 pounds each, depending on the model. Most crews set them with a skid steer or loader.
Can the slab pour against the columns? Yes. The slab pours against concrete instead of wood.
Common questions
What if my frost line is deep? Column extenders attach to the base of the column to add embedment depth.
What about high wind areas? Uplift anchors bolt to the base of the column for added holding strength.
My plans show a slab or stem wall. Can I still use your products? Yes. Sturdi-Wall® brackets anchor wood columns to the top of the concrete. Tell us which foundation your plans show.
Will my engineer accept it? Send them the ICC-ES report and our design guide with calculations. Both are free to download.
How heavy are the columns? 165 to 345 pounds each, depending on the model. Most crews set them with a skid steer or loader.
Can the slab pour against the columns? Yes. The slab pours against concrete instead of wood.
Contact for pricing
